Material Handling System Gravity Pallet Flow Rack Load 8000kgs Pallets

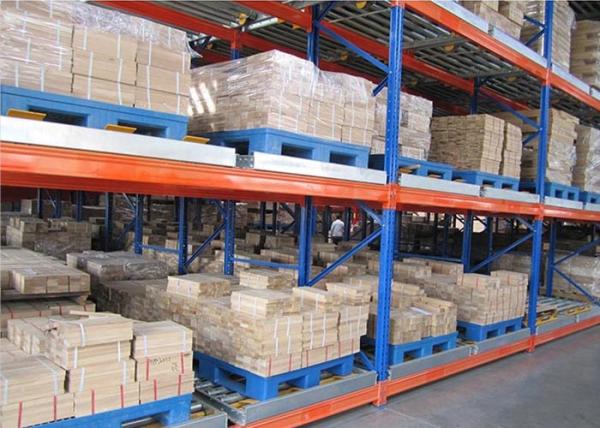

FIFO gravity flow pallet rack description:
Pallet flow rack systems are generally first in, first out (FIFO). In a flow rack system, pallets are loaded into the storage lane from the loading aisle and fed by gravity towards the unloading aisle.
Gravity flow rack systems are made up of two main parts:
The rack structure: depending on your application environment, pallet flow racking can be engineered with either structural or roll formed pallet rack, offering you the best solution for your operations.
Pallet flow wheels, rails and brakes: These components are all selected based on the individual application.
Advantages of Gravity Pallet Racks:
1. Space-saving, high density storage
2. Customized, tailor-made design and layout
3. Dynamic “flowing” warehousing
4. Fast — Immediate access to every product
5. Versatile — Well-suited to refrigerator or freezer storage applications
6. Practical and efficient
7. Operator friendly
8. Tested for your unique application
9. Time-saving — only one input and one output aisle
10. Minimal maintenance and reliable
11. References from all types of industries
Specifictions of gravity flow pallet rack:
| Material | Stainless Steel Q235 |
| Depth | 1500-3000mm or customized |
| Width | 2000-10000mm or customized |
| Height | 2000-8000mm or customized |
| Weight Capacity | 1000-8000KGS |
| Steel Grade | Q235, Q345 ,SS400 |
| Color | Blue coating, Orange coating, Red coating or Customized |
| Use for | Industrial Equipment Storage, Warehouse Storage Racking etc. |
| MOQ | 1 set |
| Supply Ability | 1000 sets per month |
| Payment Terms | 30% deposit upon signing the contract and the balance will be cleared before delivery. |
Features of Gravity Flow Pallet Rack:
1. Gravity flow rack systems provides maximum storage capacity using the minmum amount of the space
2. It is particularly suited to store very large quantities of homogeneous products.
3. This systems racks operate on the basic First-In First-Out.
4. Compatible with many handling equipment styles.
5. The height between levels can be adjusted easily by 75mm assemble quickly and easily with a hammer or mallet. Widely used in cold room warehouse.
6. Shelves can be adjusted per 75mm pitch.
7. Corrosion resistant: tough power coat finish resists rust and cratches.
8. each shelves holds up to 1000-4500kg.
About Liyuan Company:
Shenzhen Liyuan Industrial Equipment Co., Ltd. is specialized in the development, design, production, sales, installation and service of storage and storage equipment since 2007 . It has become a large-scale storage shelf manufacturer at home and abroad. And advanced companies in the development and production of intelligent industrial equipment. The company has passed ISO9001: 2000 quality management certification, ISO14001: 2004 environmental management system certification, OHSAS18001: 2007 safety management system certification. And has won the honorary title of China's quality and credit enterprise and the title of advanced intelligent and technological enterprise.
FAQ:
1. What makes you different with others?
1) Our Excellent Service
For a quick, no hassle quote just send email to us
We promise to reply with a price within 24 hours - sometimes even within the hour.
If you need an advice, just call our export office at 0086- 0755-29792161, we will answer your questions immediately.
2) Our quick manufacturing time
For Normal orders, we will promise to produce within 15 days.
As a manufacturer, we can guarantee the delivery time according to the formal contract.
3) Our Special Export Design
We pay very much attention to the export packages. We have plastic clips on the beams to protect the beams from surface damage in the transportation, We have got the whole uprights wrapped with transparent plastic film.
4) Our Export Experience
We are a manufacturer which wholesales storage racks in large quantity for over 10 more years.
2. How do you ensure your product and service quality?
A: All our processes strictly adhere to ISO-9001 procedures. Raw material inspect ---- First Production Confirm ---- Painting inspect ------ Full inspect before packing. And we have 3 years quality warranty against BL issue date.
3. How to install the racks?
A: You will get detailed install instruction for the rack you custom. If needed, we can provide our engineers to instruct your workers.
4. What is delivery time?
This depends on the product. Typically standard products are delivered within 20 days.
The delivery time of the special products is according to the time of setting up of the tooling.
5. What is the term of payment?
1) T/T payment.
2) L/C
6. If we find your bank account different as before, how should we respond?
A: Pls don’t send the payment and double check with us before arrange payment.
7. What you need to provide us before quotation?
A. Already with project design: Just send us, you will get quotation soon.
B. Without project design: Tell us detailed information, for example warehouse size, rack size, loading capacity, level…You will get free design.
8. If we don’t find what we need on your web, what should we do?
A: We could provide custom service, pls tell your request to us.
9. May I know the status of my order?
Yes .We will send you information and photos at different production stage of your order. You will get the latest information in time
10. How to be the agent of your factory?
A: We are warmly welcome the agent from world country. Pls feel free to contact us for detailed discussion. You will be the solo agent in your country.
